Cortizo 4700 Slider

The Cortizo 4700 Sliding Door system combines minimalist aesthetics with robust performance, making it the perfect choice for modern homes and commercial spaces. Available in both dual track and triple track configurations, it offers flexible design options for larger openings. With slim aluminium frames, smooth sliding action, and outstanding thermal and acoustic insulation, this system maximises natural light while delivering durability and a sleek, architectural finish.

Description

This sliding system, available both in slide and lift & slide versions, becomes an ideal solution for closing large spans.



It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.

Technical Data

» Maximum glazing thickness

36 mm



» Opening possibilities

Sliding of  2, 3, 4, 6 & 8 sashes

Possibility of 1 rail (1 sash+ 1 fixed)

Possibility of 2, 3 & 4 rails

 Possibility pocket solution 1, 2, 3 & 4 sashes



» Sections

Frame 120 & 115 mm

Sash 50 mm



» Profile thickness

Balcony 1.5 mm



» Polyamide strip length

20 & 25 mm



» Maximum dimensions/sash

Width (L) = 2,500 mm

Height (H) = 3,000 mm

» Maximum weight/sash

Slide: 280 Kg

Lift & Slide: 300 Kg



Please consult regarding maximum weight and dimensions for other opening types



» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised

Test Centre

» Transmittance

 Uw ≥  1.00 (W/m²K)

Please consult typology, dimensions and glazing



» Maximum acoustic insulation

Rw = 40 dB



» Air permeability

(EN 12207)Slide: Class 3Lift & Slide: Class 4



» Water tightness

(EN 12208): Class 7A



» Wind resistance

(EN 12210): Slide: Class C5

Lift & slide: Class C2



Reference test:

Slide: 1.80 x 2.20 m / 2 sashes

Lift & slide: 4.00 x 2.50 m / sashes



Security test PAS24:

Apt

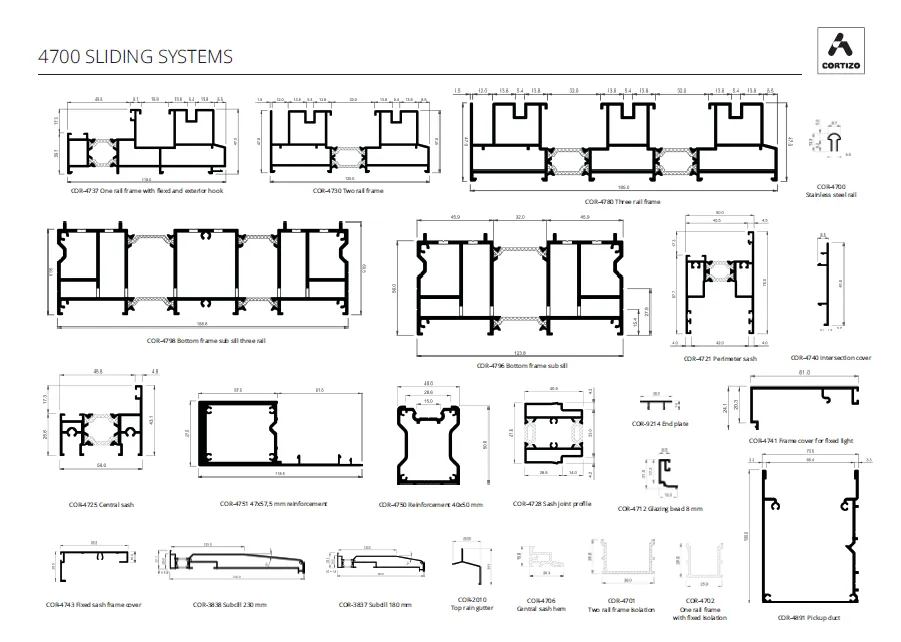

Cortizo 4700 Profile Chart

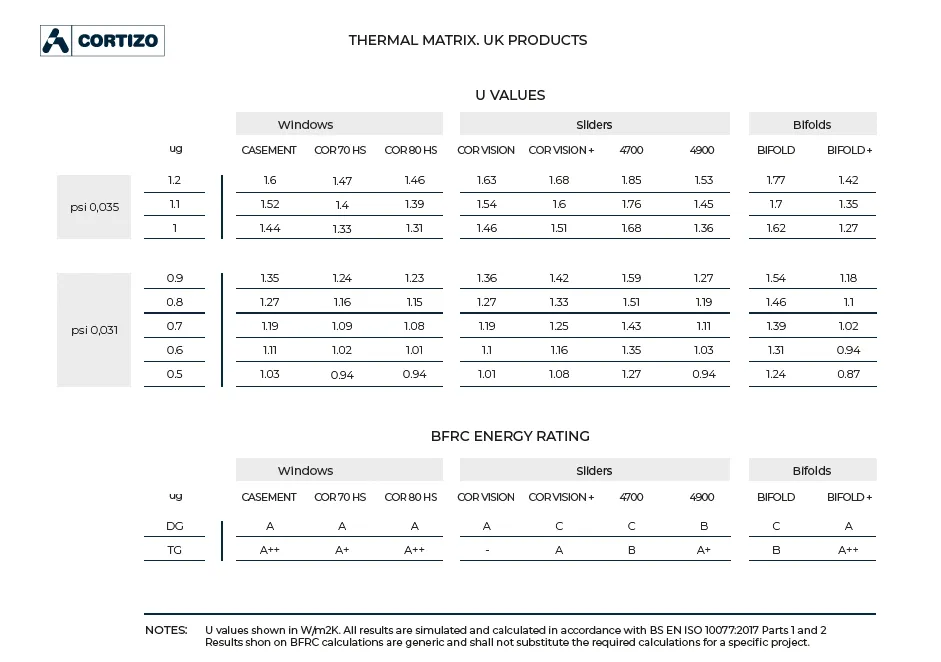

Cortizo 4700 U Value Chart

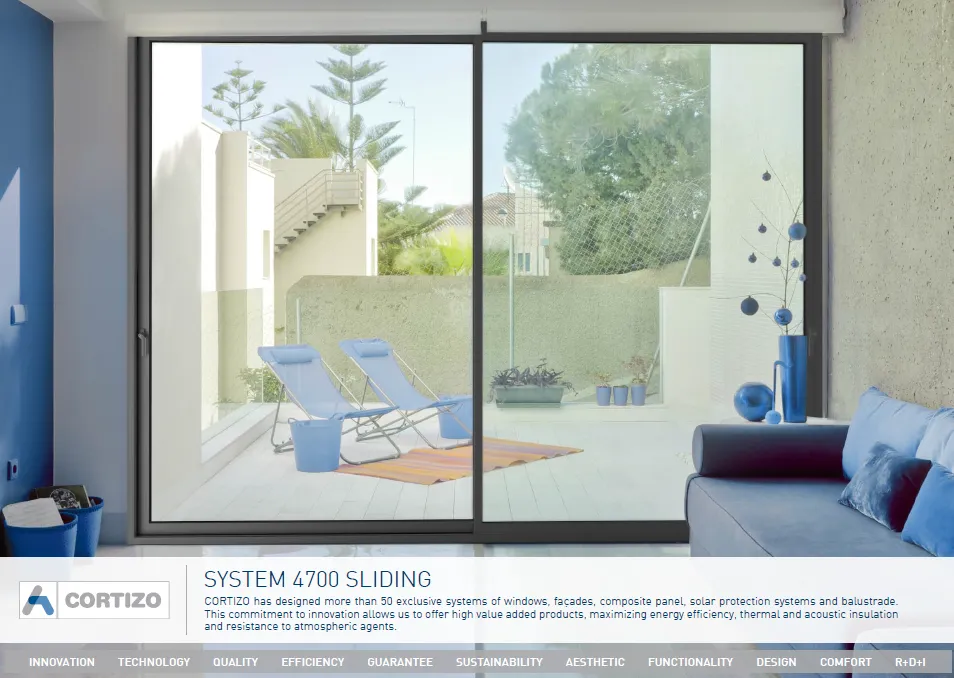

Cortizo 4700 Brochure

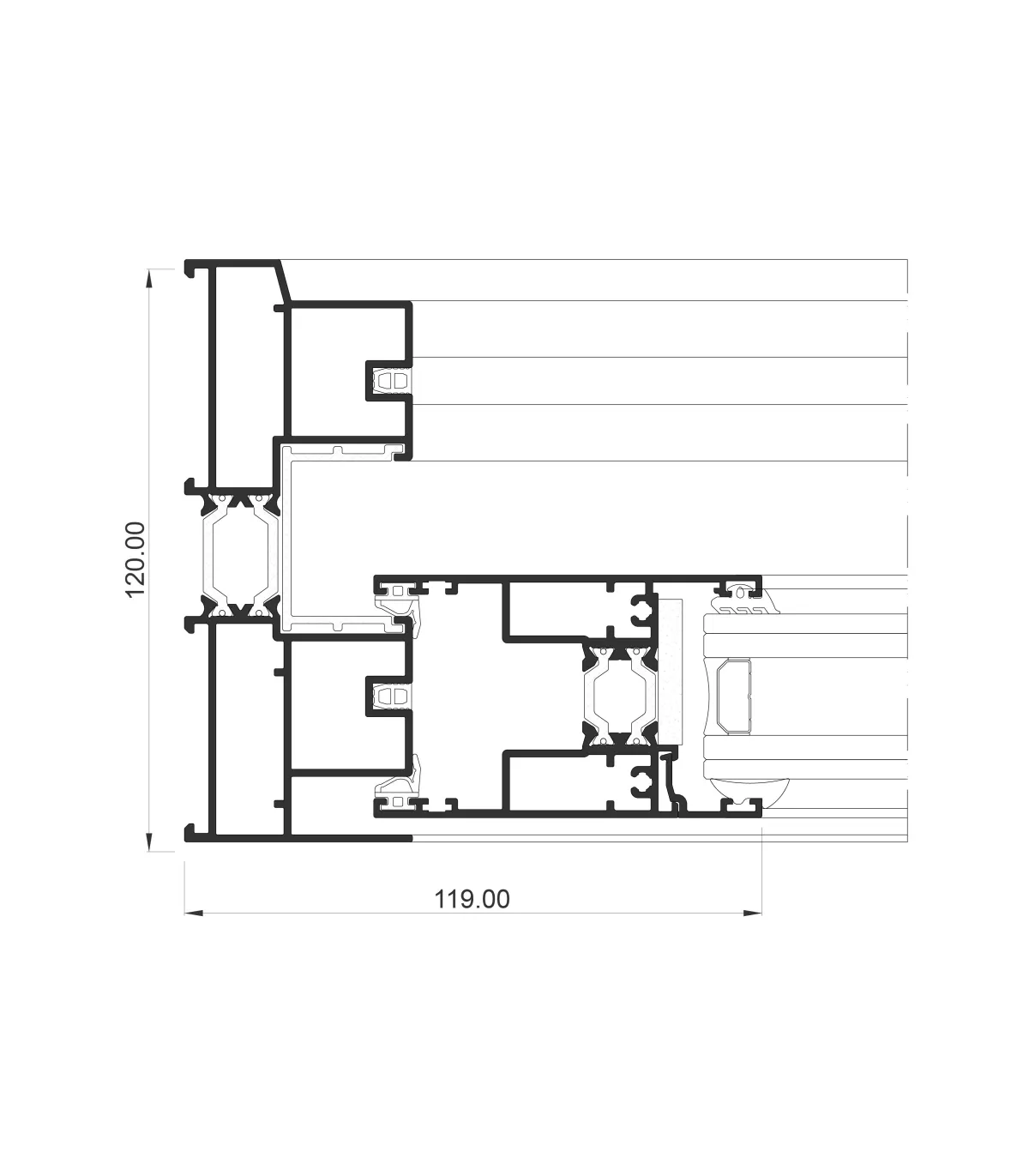

3 Track Cross Section

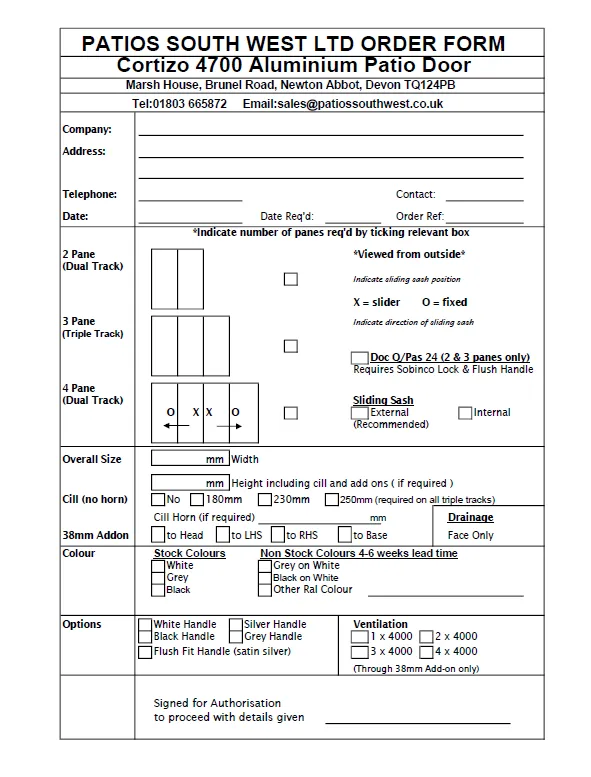

Cortizo 4700 Order Form

Cortizo 4700 Quote Form

Cortizo 4700 Data Sheet

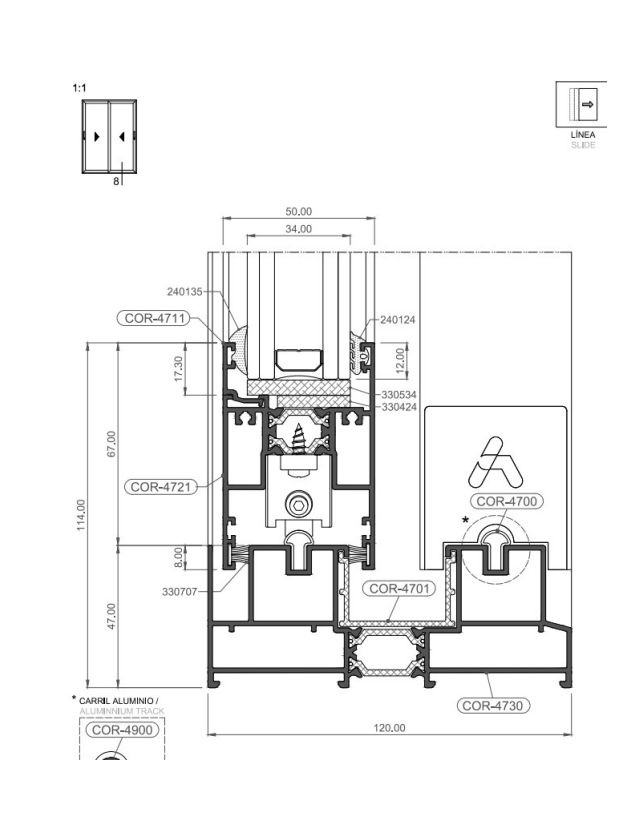

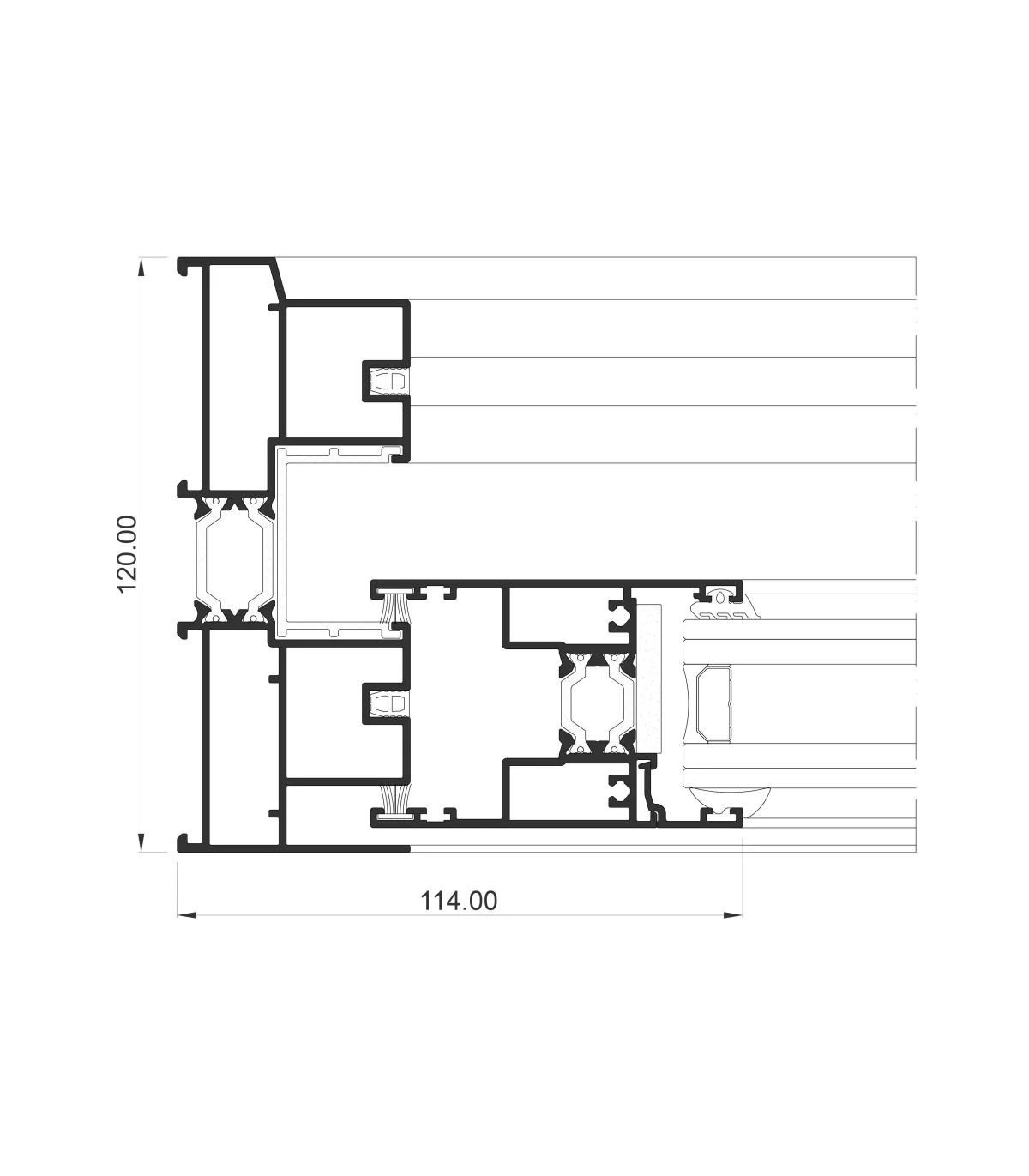

2 Track Cross Section

4700 Frame Assembly

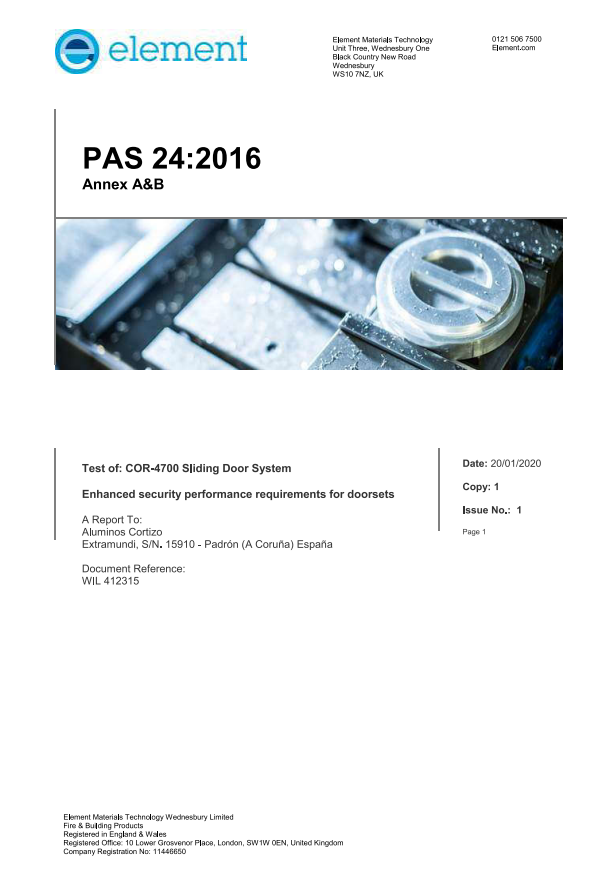

Pas 24 Certificate

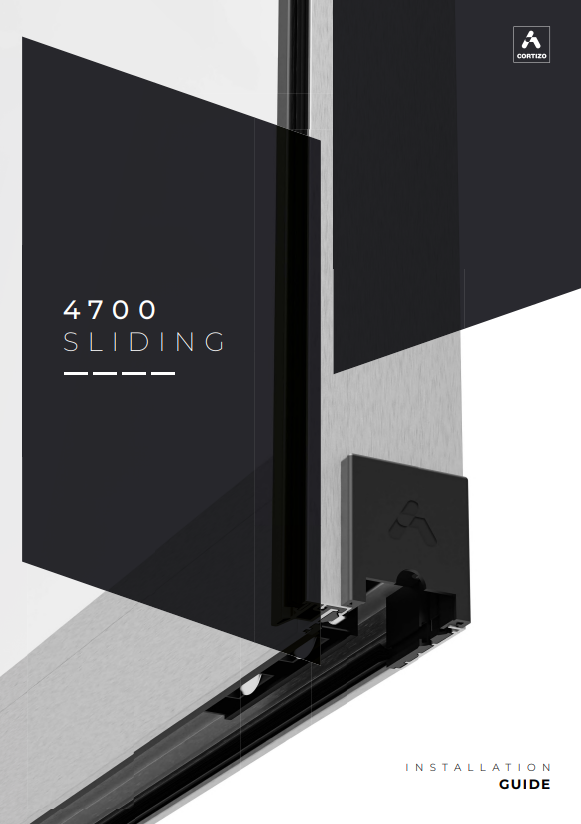

4700 Installation Guide

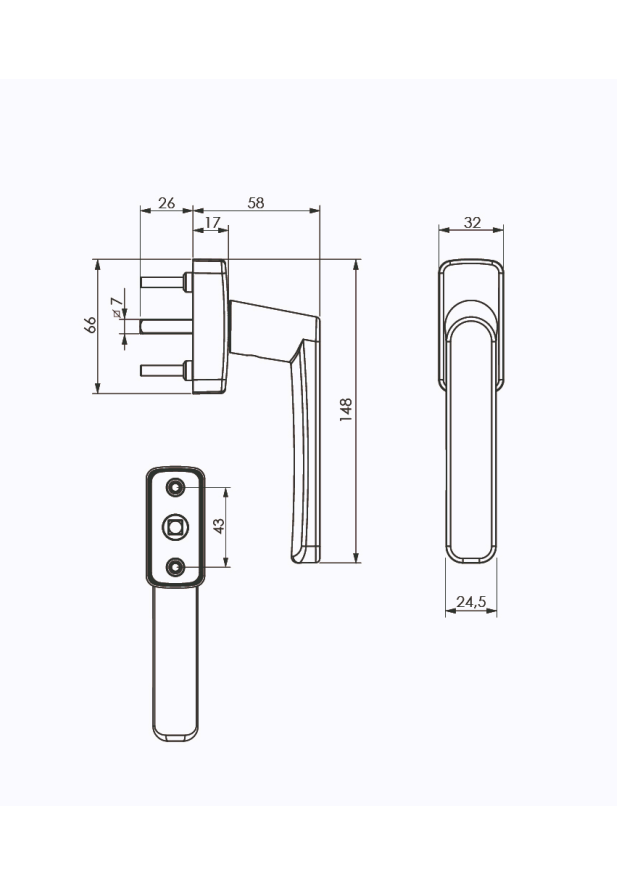

4700 Handle Sizes
